Dimension Requirements

Home >> Systems >> Tube Framing Clamp Systems >> 3 Inch Tube Framing Clamp System >> Dimension Requirements

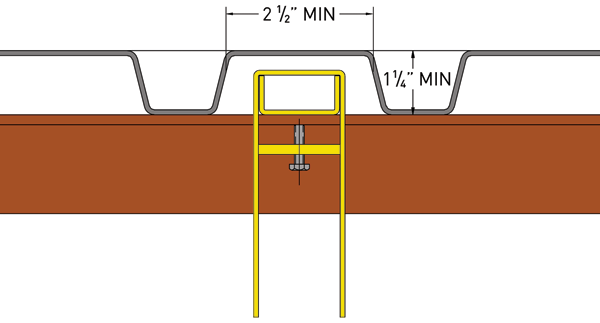

Minimum clearance with 2 1/2” x 1 1/2” Corrugated Roof decking; 7” max. width of joist top. Carriage Bolts must be Grade 5. Provided Grade 5 Bolts dyed yellow.

Request Pricing & Ordering Information

Need help placing and order?
Call (708) 343-8311

Modification or additional loading of any structure must be reviewed by a structural engineer. Each Chicago Clamp Systems® (CCS) application must be selected under direction of a structural engineer. CCS do not increase load capacity of any structure. Chicago Clamp Company (CCC) takes no responsibility for the load capacity of any building. Only use components provided by CCC.
